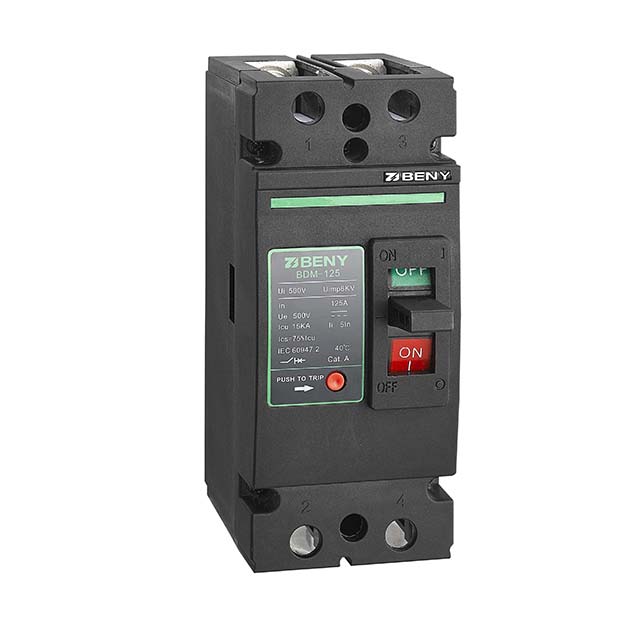

BESS DC Breaker BDM

  • BESS DC Breaker
  • Download Pdf
  • +86-577-57177008
  • benyi@zjbeny.com
  • +86-577-57177007
  • timwu9111

Direct Current Molded Case Circuit Breaker for Commercial Solar PV Battery Energy Storage Systems (BESS) and UPS applications.



The BESS systems including batteries requires reliable and safety protection and isolating devices.


The ZJBENY BDM series DC circuit breakers meet IEC standards for protecting and isolating DC circuits up to 500V and 80A to 250A rated operating current.

The BDM breakers are designed for applications including solar photovoltaic, electric vehicle charging stations, commercial battery storage and UPS applications.


For DC circuit over-current protection and controlling.


Features:


*IEC 60947-2 standard

*IP65 UV resistance enclosure for outdoor installation is optional

*Can be applied in grounded or ungrounded systems

*Tested to extreme ambient conditions from–40 to 85º C

*Available up to 65A-250A 500V

* Lockable transparent cover

* 5 years warranty for free replace


Model

BDM-125; BDM-250

Poles

2P

Standard

IEC60947.2

Utilization Category

DC-21B

Rated Operational Voltage (Ue)

500V

Rated Current

65A,80A,100A,125A; 160A,200A,250A

Mechanical Cycle

10000

Electrical Cycle

2000

Protection Degree

IP20 body

Polarity

No Polarity

Certificate

SAA / TUV
