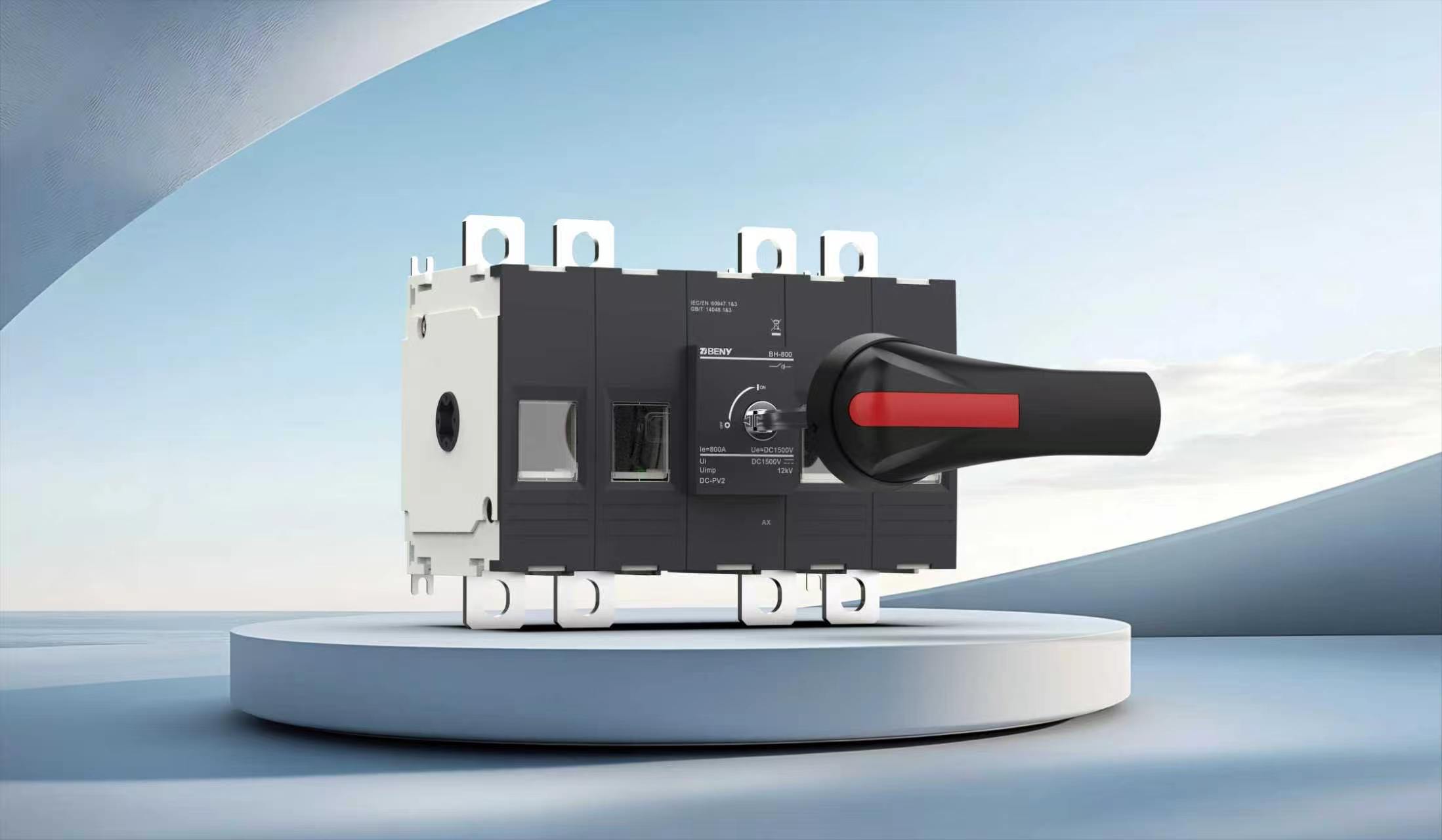

DC Disconnect Switch 1500V 800A BH-800-2P IEC&AS

BH-800 2P 1500V PV DC Isolator Switch CE and AS certified

Highlights :
1500V
Up to 800A
2 Pole
Reliable DC arc extinguishing technology with PCT patents
Lockable handle
Non-polar switch
Modular design
Work temperature: -40~+85 °C

Solar DC switch disconnect up to 1500V 800A

The BH-800 Series PV DC Isolator Switch is engineered for PV combiner boxes and energy storage systems, supporting rated voltages up to 1500 V DC and currents up to 800 A. Designed for reliable isolation and infrequent switching, it provides safe circuit disconnection and dependable electrical isolation for low-voltage DC applications.

Advantages

Polarity-Free Design for easy installation with both positive and negative DC connections.

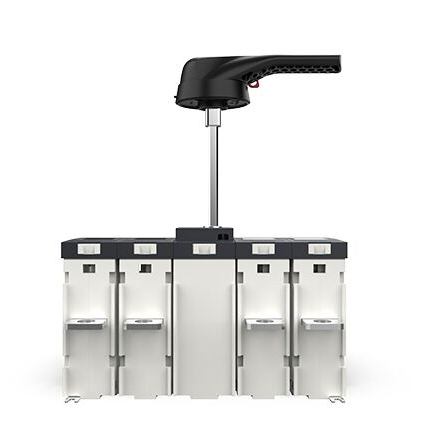

5,000 Mechanical Operations for both front and side-mounted operating mechanisms, ensuring long-term reliability.
Ultra-Low Contact Resistance (≤0.18 mΩ, 2P) for reduced power loss and improved efficiency.
Up to IP66 Protection for panel-mounted applications in harsh environments.
Patented Operating Mechanism and Arc Extinguishing System, independently developed and protected by PCT invention and utility model patents.

SPECIFICATION
