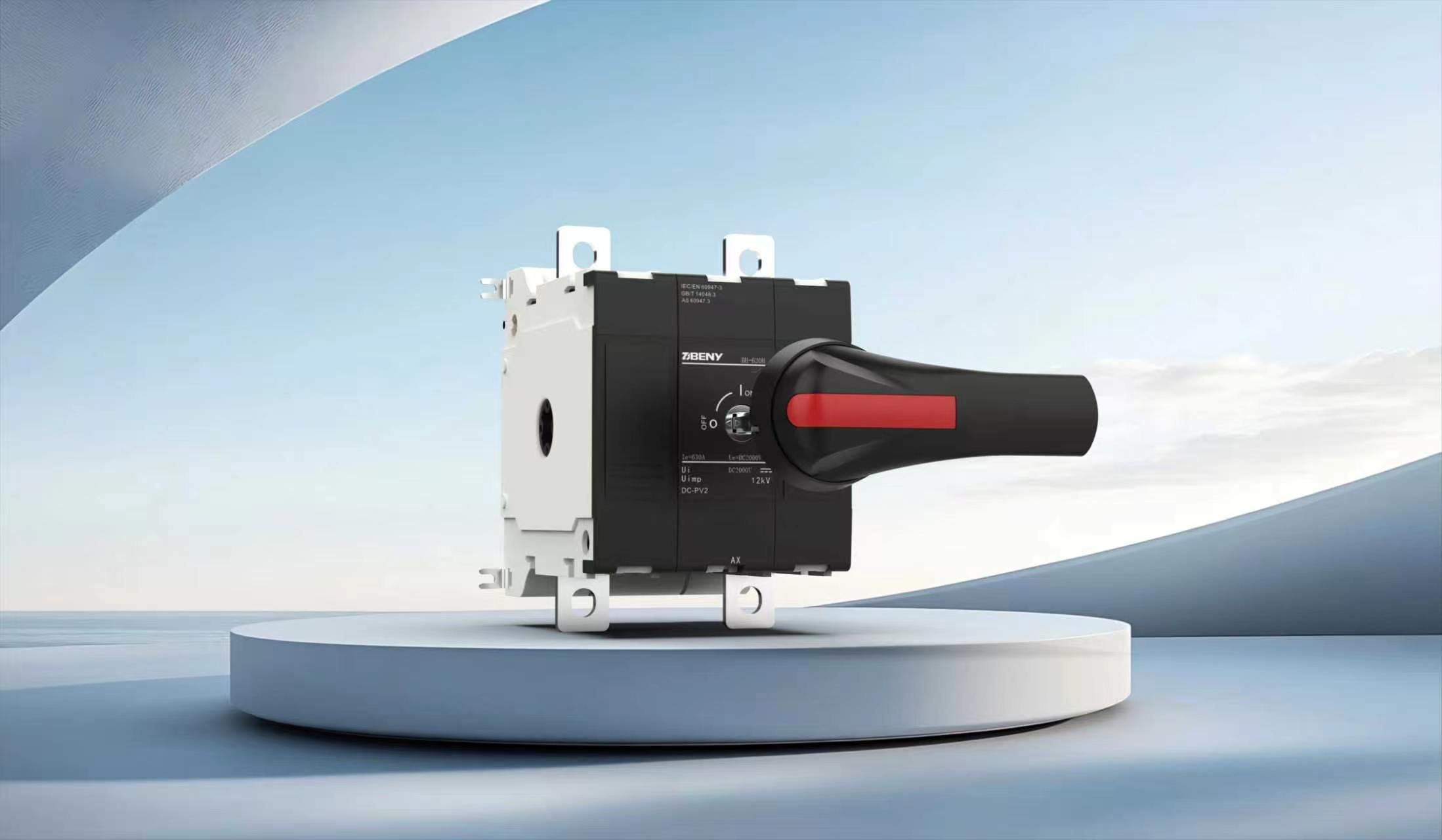

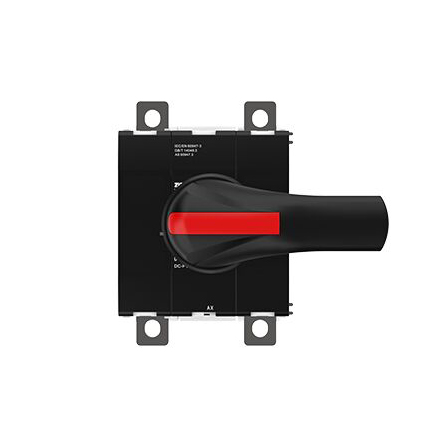

DC Disconnect Switch 2000V 630A BH-630-2P IEC

BH-630H Series PV DC Isolator Switch is designed for PV power systems with a rated operational voltage up to DC 2000 V and a rated current up to 630 A.

Highlights :
2000V
Up to 630A
2 Pole
Reliable DC arc extinguishing technology with PCT patents
Lockable handle
Non-polar switch
Modular design
Work temperature: -40~+85 °C

Solar DC switch disconnect up to 2000V 630A

The BH-630H Series PV DC Isolator Switch is designed for PV power systems with a rated operational voltage up to DC 2000 V and a rated current up to 630 A. It provides reliable isolation and circuit disconnection, ensuring safe isolation for low-voltage circuits in photovoltaic applications.

Features

Flexible Installation & Operation
Front, side, or external operating mechanisms available to accommodate various installation requirements.
High-Performance DC Switching
Rated up to DC 2000 V / 630 A with DC-PV2 utilization category for demanding photovoltaic and energy storage applications.
Energy-Efficient Design
Consumes only 40 W at full load, reducing auxiliary power consumption.
No Derating at Rated Current
Achieves only 40 K temperature rise at 630 A in accordance with IEC/GB standards, enabling continuous full-rated current operation without derating.
Built for Extreme Conditions
Engineered to operate reliably in harsh environments, withstanding ambient temperatures up to +70°C and installation at altitudes up to 5,000 m.

SPECIFICATION
