Solar DC mini circuit breaker

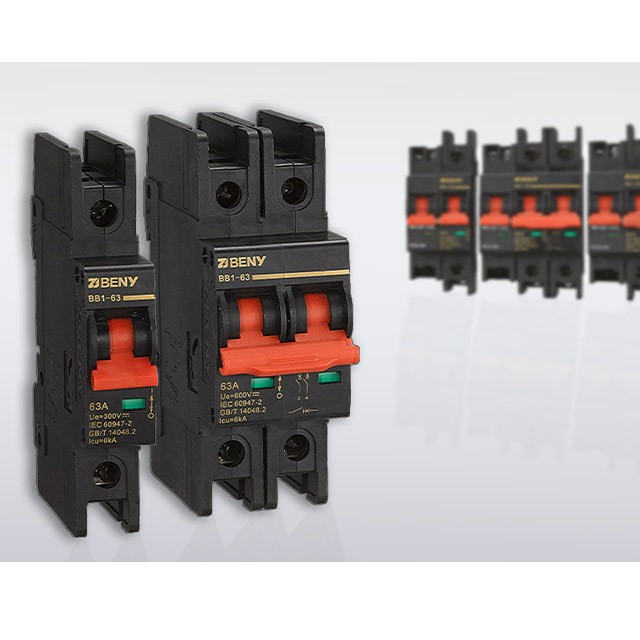

The BB1-63 modular miniature circuit-breakers can be used in solar DC circuits up to 1200 VDC (4-poles execution). Application in solar DC circuits, battery energy storage systems and UPS.

Arc flash barrier design keeps solar equipment more safe and reliable.

For DC circuit over-current protection.

Features:

Non-polarity DC breaker

Up to 1200V 63A

IEC-60947.2

Arc flash barriers keep the systems safety

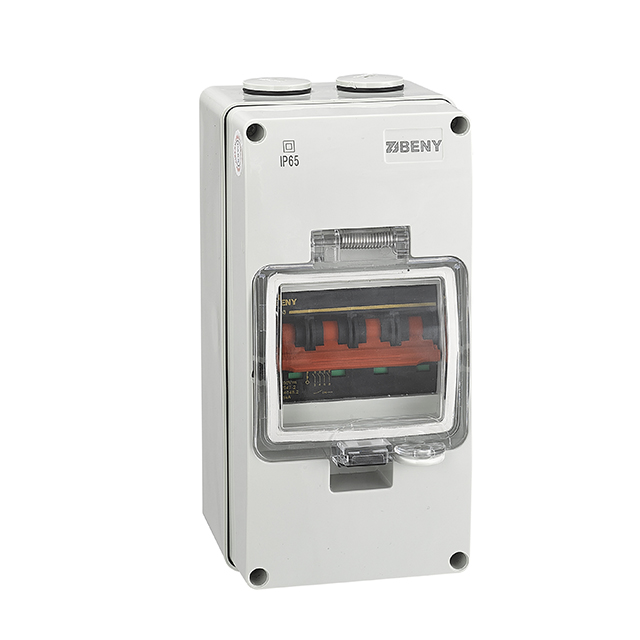

IP65 PC enclosure is optional



AUXILIARY CONTACT FOR BB1-63

Auxiliary contact unit must be mounted from the left to the device or to the release unit(s) when installed.

Contact units are equipped with changeover (CO) combination(s) of contacts.

●Auxiliary contacts synchronnous with main contacts of device

●According to IEC/EN 62019





SHUNT RELEASE AND AUXILIARY CONTACT FOR BB1-63

●Shunt Release and Auxiliary contacts for installation devices BB1-63

●Shunt trip releases and Auxiliary contacts



Model

BB1-63

Poles

1P 2P 3P 4P

Standard

IEC60947.2

Utilization Category

DC-21B

Rated Operational Voltage (Ue)

300V,600V,900,1200V

Rated Current

3A 4A 6A 10A 13A 16A 20A 25A 32A 40A 50A 63A

Mechanical Cycle

20000

Electrical Cycle

1000

Protection Degree

IP65 enclosure/IP20 switch body

Polarity

No Polarity

Certificate

SAA / TUV
