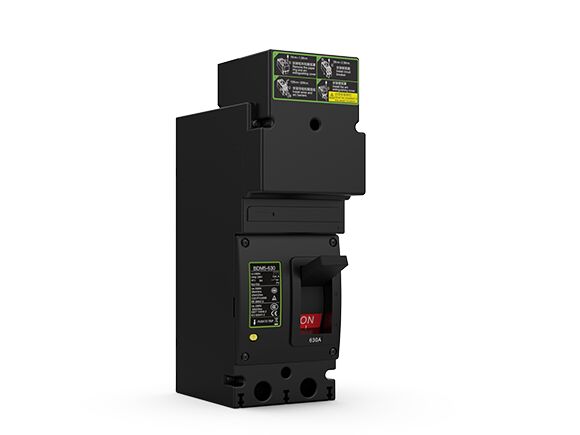

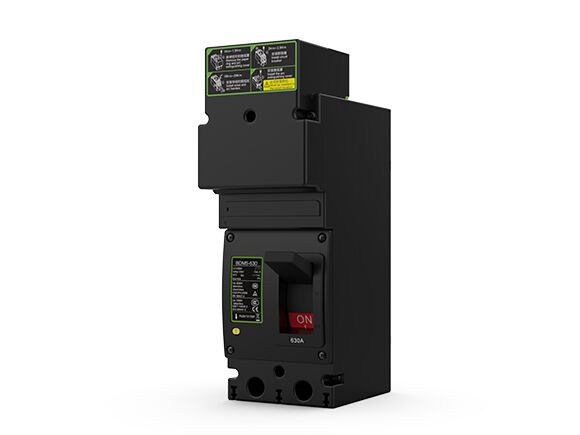

DC Moulded Case Circuit Breaker BDM5-630

With rated voltages of DC 2000V and DC 1500V and a rated current up to 630A, BENY BDM5-630 molded case circuit breaker can quickly interrupt the fault current of the DC power distributtion system, ensuring the reliable operation of the solar photovoltaic power generation system.

Highlights :
Rated voltage up to DC 2000V
Rated current up to 630A
Comply with: GB/T 14048.2,IEC 60947-2,EN 60947-2
High breaking capacity,excellent insulation performance
Zero arcing
Overload protection and short circuit protection
Easy to install, compact in size

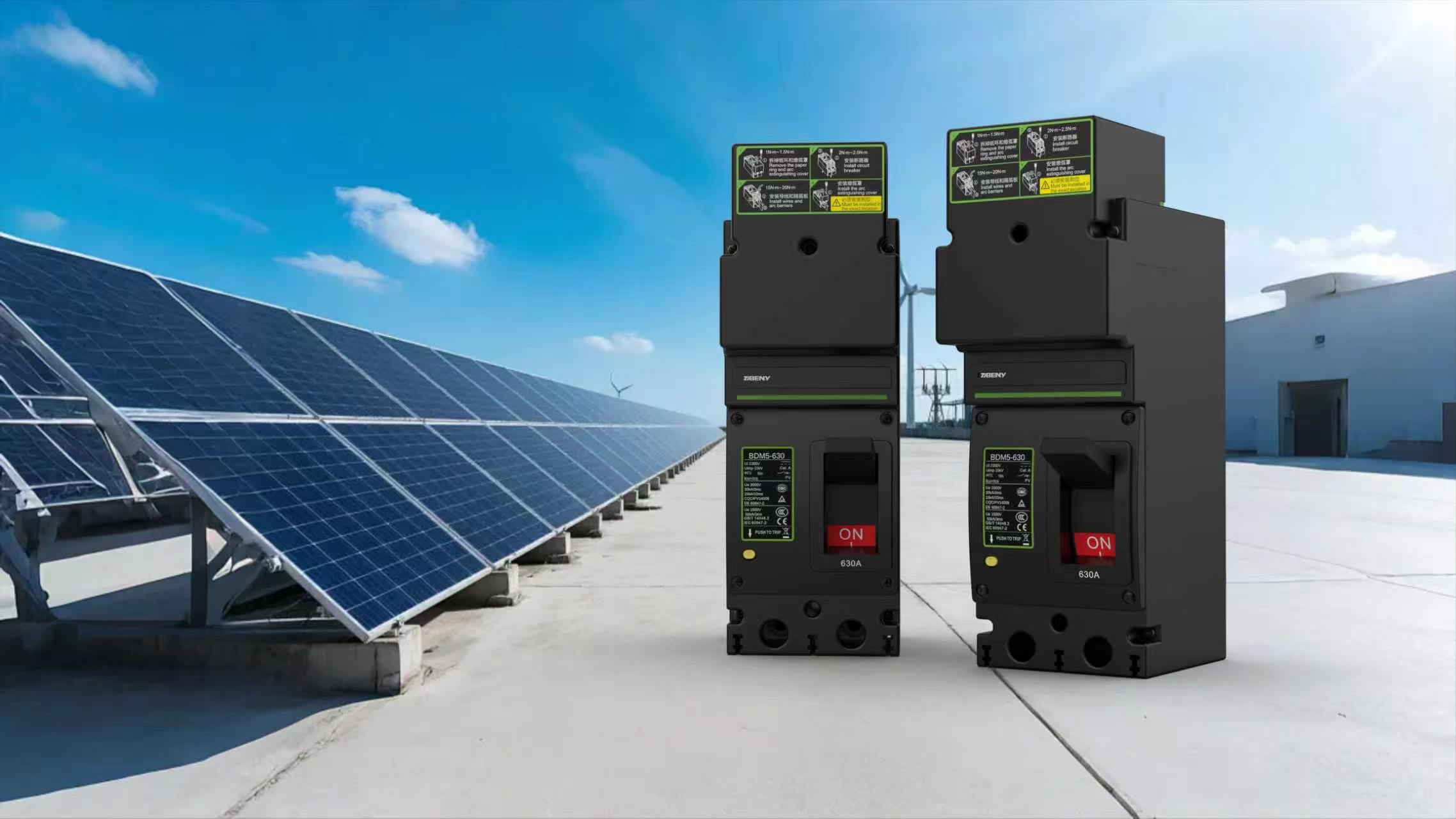

BENY 2000V Moulded Case Circuit Breaker for Solar Combiner Box and Energy Storage Battery

BDM5-630 DC molded case circuit breaker is mainly applied in photovoltaic power generation systems and other new energy circuit systems, including photovoltaic combiner boxes, photovoltaic inverters, photovoltaic DC cabinets, etc
With rated voltages of DC 2000V and DC 1500V and a rated current up to 630A, it can quickly interrupt the fault current of the DC power distribution system, ensuring the reliable operation of the solar photovoltaic power generation system。

Key Features

Compact Design

Easy to install with a space-saving, compact structure.

High Breaking Capacity

Delivers excellent interruption performance and superior electrical insulation.

Comprehensive Protection

Provides reliable overload and short-circuit protection for enhanced system safety.

Arc-Free Isolation

Zero arcing during isolation operation for improved safety and reliability.

Up to DC 2000 V

Rated operating voltage up to DC 2000 V for high-voltage DC applications.

Up to 630 A

Rated current up to 630 A, meeting the demands of high-power PV and ESS systems.

International Standards Compliance

Fully compliant with GB/T 14048.2, IEC 60947-2, and EN 60947-2.

SPECIFICATION
